To Replace Old Concrete Bridge at Pasir Bayam , Raub , Pahang using DURA®UBG2000 – 50m length

  • Project Status

  • Select Country

  • Select Years

  • Reset
Project signboard.
Project signboard.
Abutment construction works are currently in progress.
Abutment construction works are currently in progress.
Project site.
Project site.

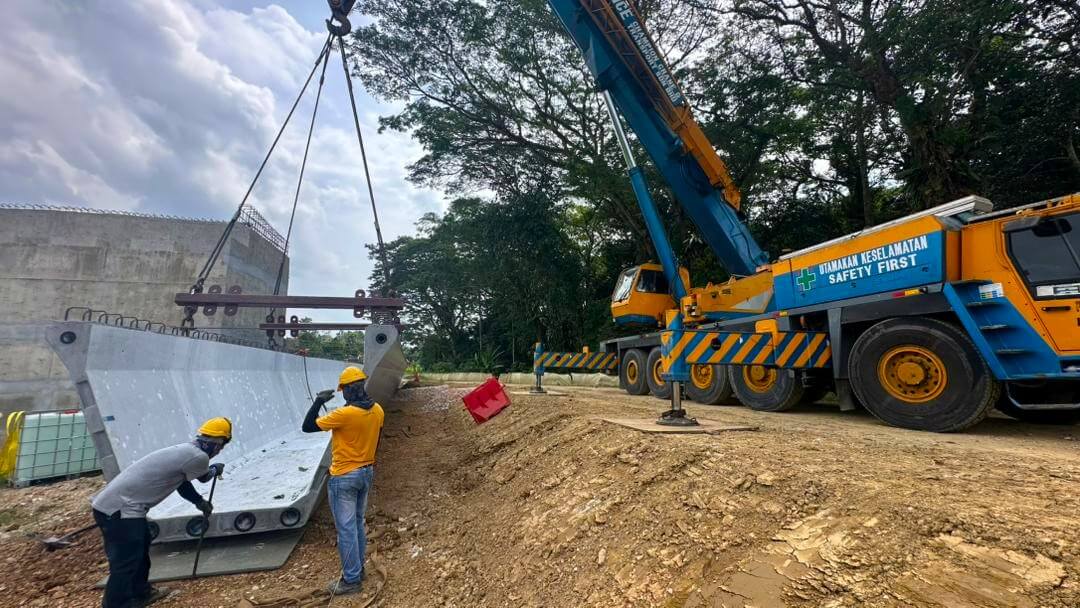

Lifting and unloading of the DURA®UBG2000 segment from the trailer to the construction site.
Lifting and unloading of the DURA®UBG2000 segment from the trailer to the construction site.
Post-tensioning completed; beams are being prepared for lifting onto the piers.
Post-tensioning completed; beams are being prepared for lifting onto the piers.
The first beam has been successfully placed and aligned atop the piers
The first beam has been successfully placed and aligned atop the piers
Lifting of the second beam onto the piers is in progress.
Lifting of the second beam onto the piers is in progress.

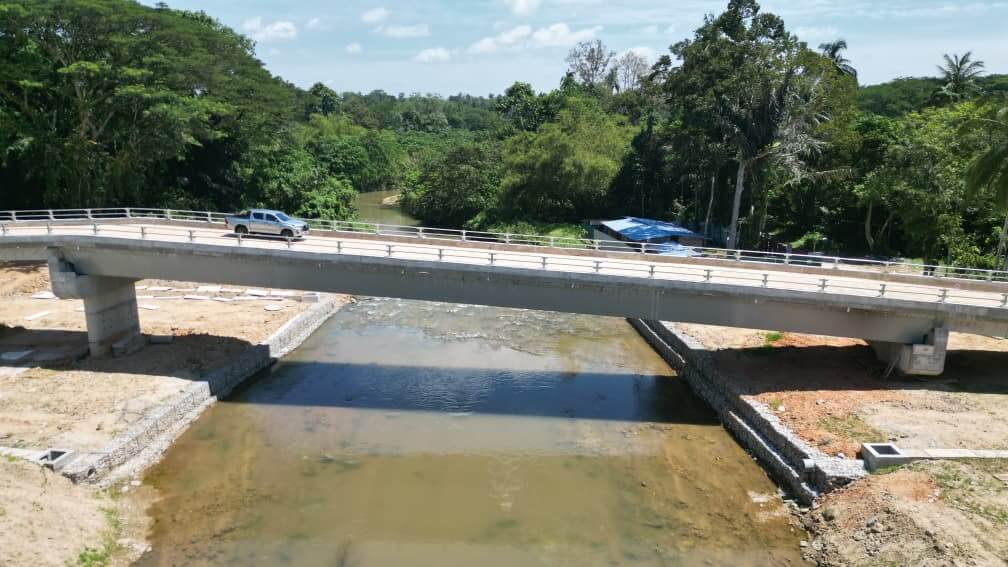

Successfully launched two DURA® UBG2000-50M beams across the river.(Worm's eye view)
Successfully launched two DURA® UBG2000-50M beams across the river.(Worm's eye view)

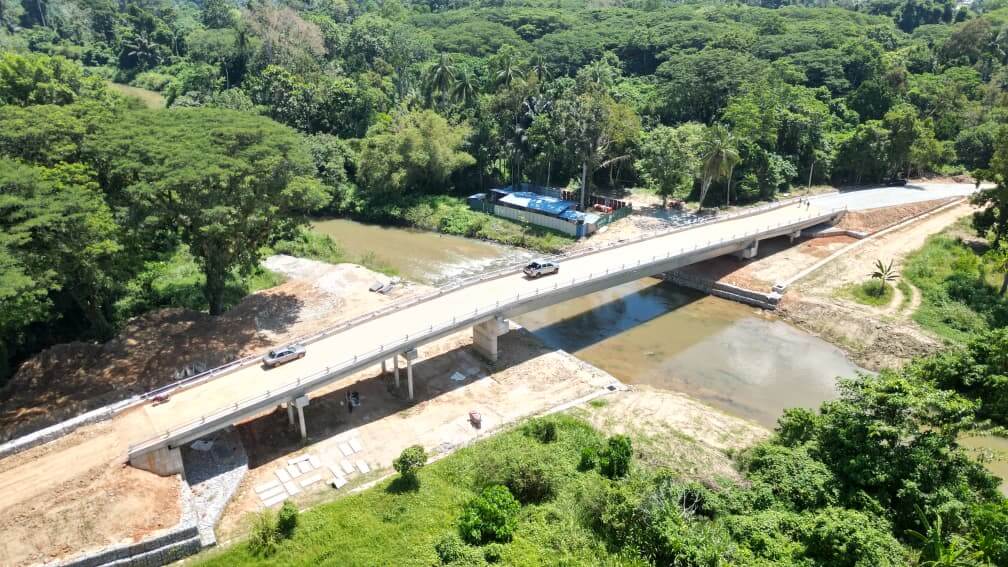

Successfully launched two DURA® UBG2000-50M beams across the river.(Bird eye view)
Successfully launched two DURA® UBG2000-50M beams across the river.(Bird eye view)
Successfully launched two DURA® UBG2000-50M beams across the river.(High level view)
Successfully launched two DURA® UBG2000-50M beams across the river.(High level view)
Successfully launched two DURA® UBG2000-50M beams across the river.
Successfully launched two DURA® UBG2000-50M beams across the river.
Project Title

MENAIKTARAF JAMBATAN PASIR BAYAM, RAUB,PAHANG.

Project Year

2025

Status

Completed Project

Country

Malaysia

GPS Cordinates

3.898184 N , 101.890366 E

Structure Type

One span 50 m by 7.9 m Wide UHPFRC Composite Bridge System

Superstructure Feature

2 pieces of DURA®UBG2000-50M

Substructure Feature

Cast in-situ RC abutments

Foundation Feature

300mm dia. Micro Piles

Loading Type

HA+ 45 units HB loadings

Client

Kementerian Kemajuan Desa dan Wilayah

Superintendent Officer (S.O.)

Jurutera Jalan, JKR Daerah Raub,Pahang

Contractor

Gabungan Inspermata Sdn. Bhd.
