To Replace Old Concrete Bridge at Sungai Liawan KM3.40, Keningau, Sabah using DURA® UBG1500 – 40m length.

  • Project Status

  • Select Country

  • Select Years

  • Reset

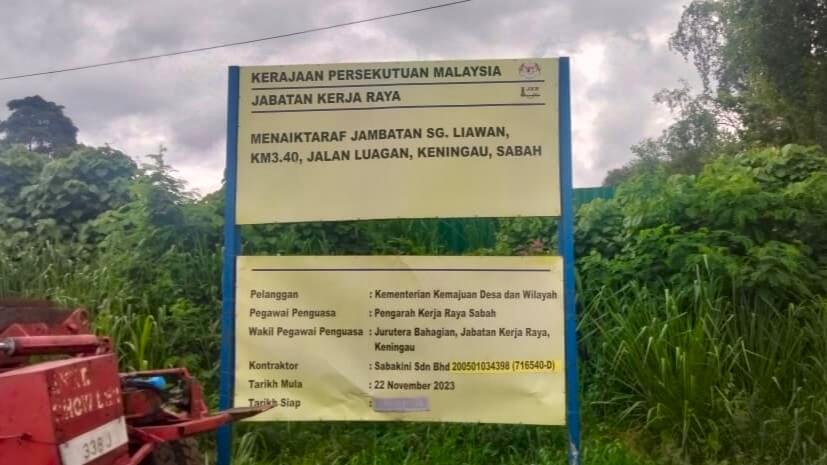

Project signboard.
Project signboard.
Project site.
Project site.
DURA®UBG1500 segmental arrived on site.
DURA®UBG1500 segmental arrived on site.

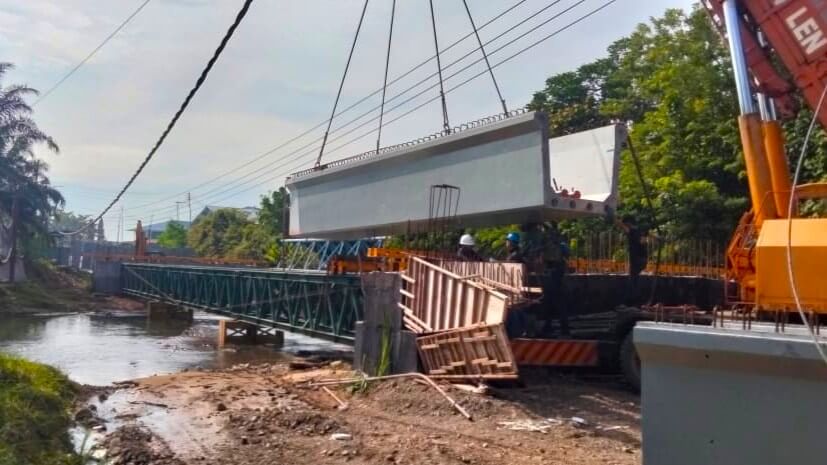

Unloading of the UBG1500 segment onto the trailer roller in preparation for segment jointing.
Unloading of the UBG1500 segment onto the trailer roller in preparation for segment jointing.
The second UBG1500 segment is being unloaded onto the trailer rollers.
The second UBG1500 segment is being unloaded onto the trailer rollers.
The first UBG1500 - 40M beam has been shifted to the side in preparation for the launching of another beam.
The first UBG1500 - 40M beam has been shifted to the side in preparation for the launching of another beam.
First UBG1500 segment for second beam unloaded onto trailer rollers.
First UBG1500 segment for second beam unloaded onto trailer rollers.

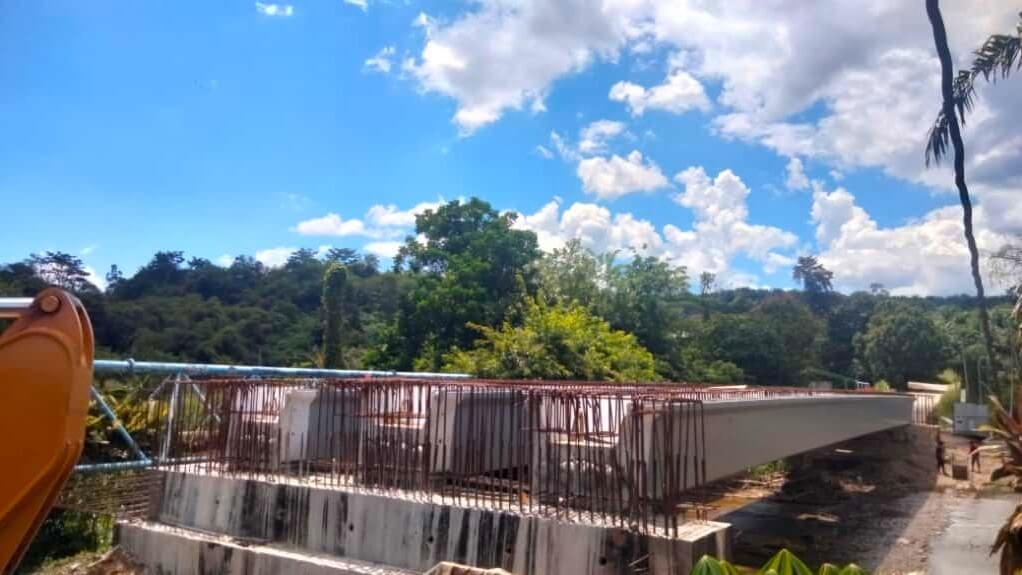

Three (3) nos of DURA® UBG1500 - 40 m have been successfully positioned and seated onto the abutments.
Three (3) nos of DURA® UBG1500 - 40 m have been successfully positioned and seated onto the abutments.
Project Title

MENAIKTARAF JAMBATAN SG.LIAWAN KM3.40 JALAN LUAGAN, KENINGAU, SABAH.

Project Year

2025

Status

On Going Project

Country

Malaysia

GPS Cordinates

5.3719613 N ,116.1651501 E

Structure Type

One Span 40m by 11m Wide UHPFRC Composite Bridge System

Superstructure Feature

3 pieces of DURA®UBG1500 - 40M

Substructure Feature

Cast in-situ RC abutments

Foundation Feature

300 mm dia. Micropile

Loading Type

HA+ 45 units HB loadings (BD37/01)

Client

Kementerian Kemajuan Desa dan Wilayah

Superintendent Officer (S.O.)

Pengarah Kerja Raya Sabah

Contractor

Sabakini Sdn. Bhd.

Contract Period

24 months
