To Replace Steel Bridge to Concrete Bridge at Gelang Patah-Pendas Road , Johor Bahru using DURA®UBG1500 – 40m

  • Project Status

  • Select Country

  • Select Years

  • Reset

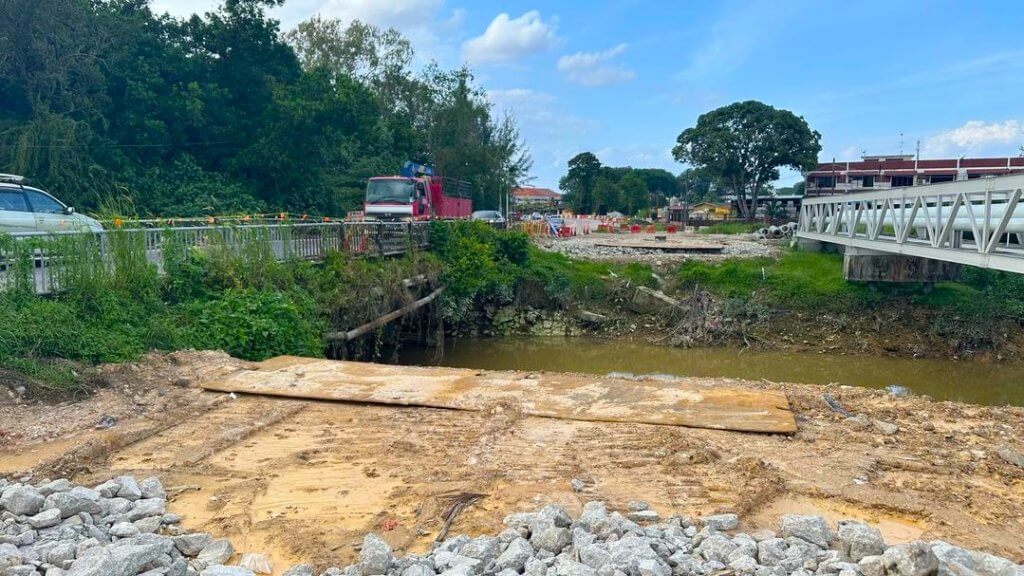

Project site.
Project site.

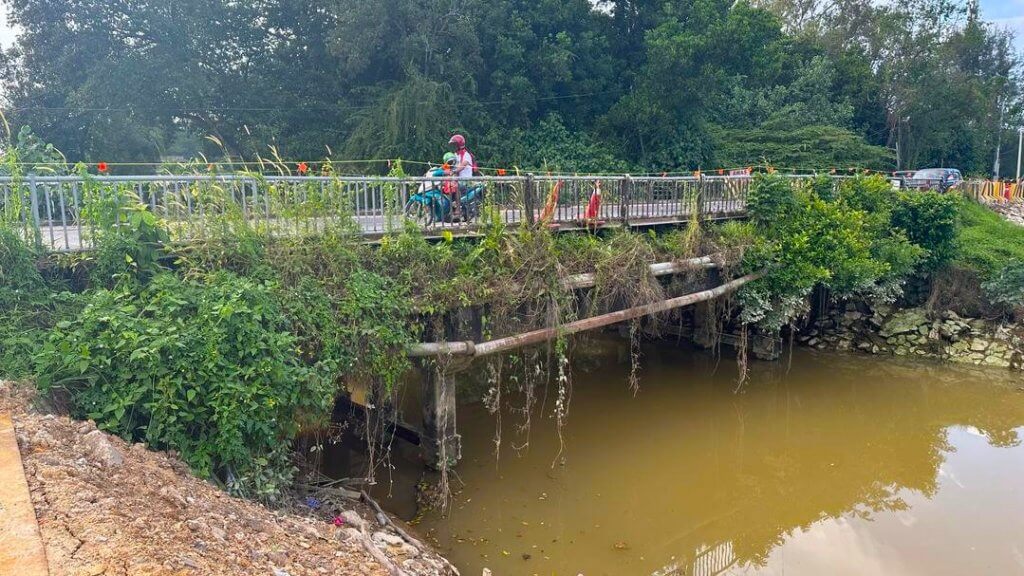

Old bridge.
Old bridge.
Beam casting ongoing at Dura Chemor factory.
Beam casting ongoing at Dura Chemor factory.

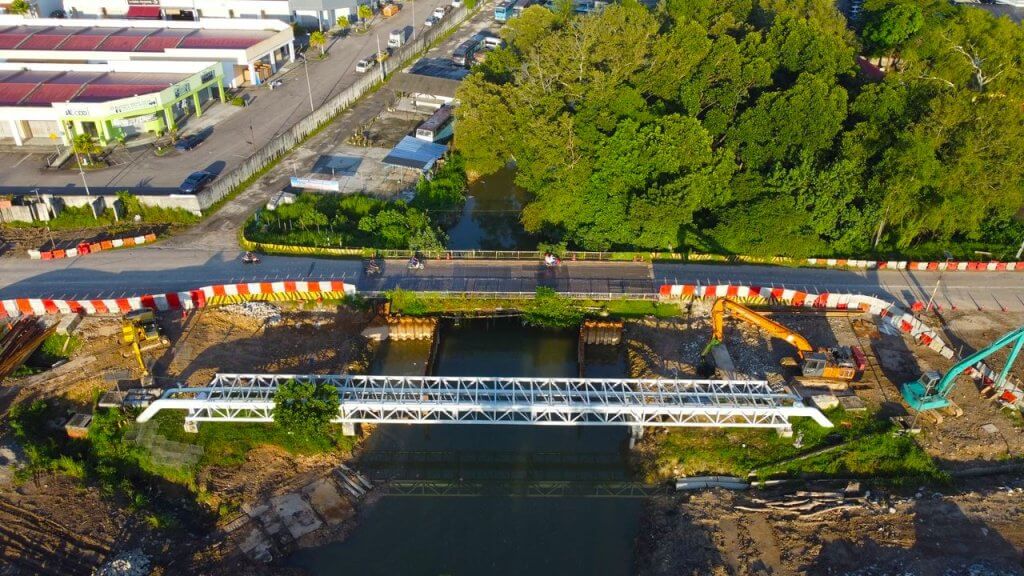

Construction site.
Construction site.
Construction of the abutments is ongoing.
Construction of the abutments is ongoing.
Post-Tensioning and Grouting Operations Completed
Post-Tensioning and Grouting Operations Completed
Lifting and Loading Beam onto Trailer.
Lifting and Loading Beam onto Trailer.
Transfer of Beam to Launching Site.
Transfer of Beam to Launching Site.
First Beam Launching in Progress.
First Beam Launching in Progress.

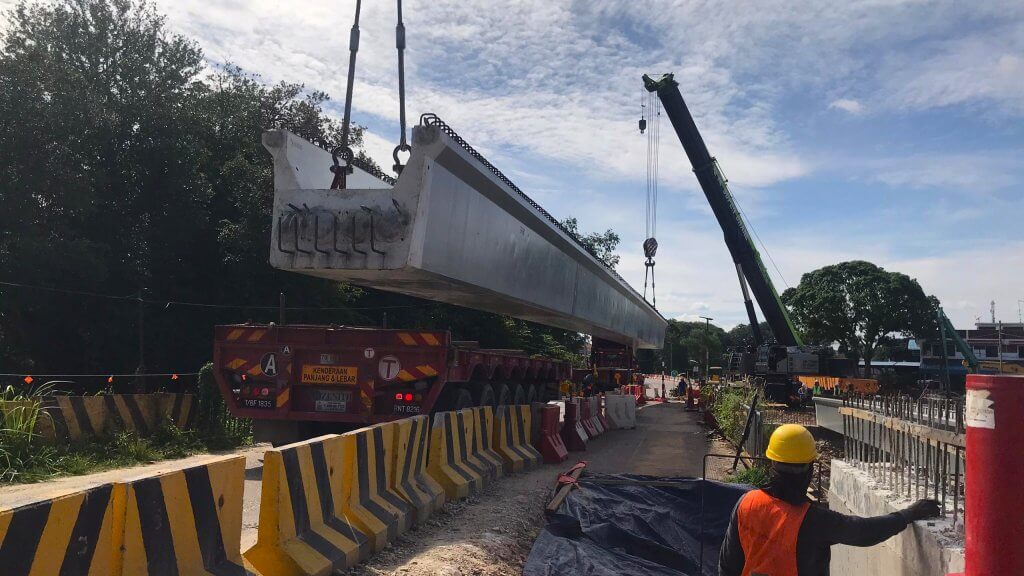

Beam Launching in Progress.
Beam Launching in Progress.

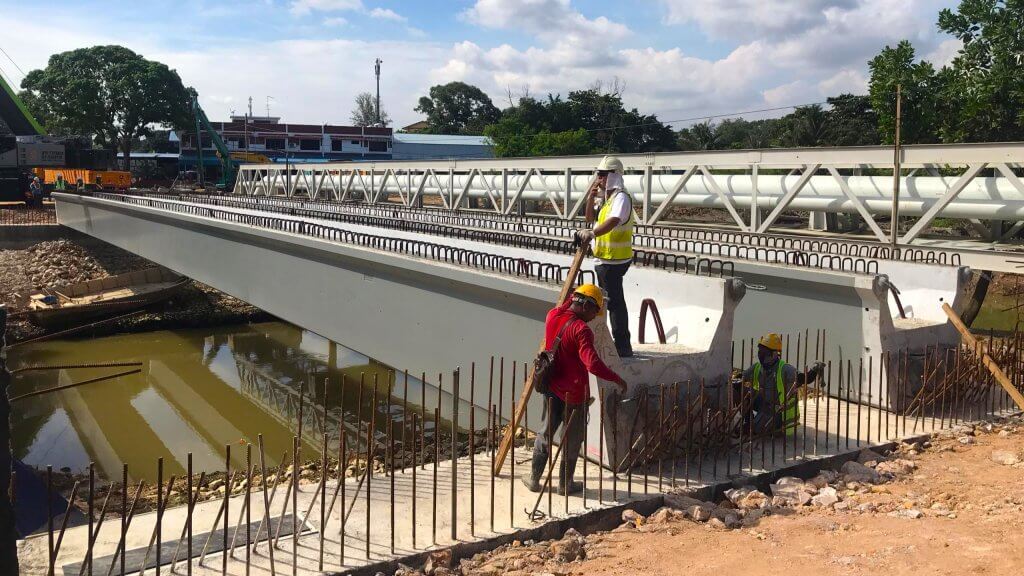

Two Beams Positioned and Aligned Accurately on Abutments.
Two Beams Positioned and Aligned Accurately on Abutments.
Positioned and aligned the last beam.
Positioned and aligned the last beam.
Completion of Beam Launching DURA®UBG1500 – 40m
Completion of Beam Launching DURA®UBG1500 – 40m
DURA®UBG1500 – 40m (Completion Launching)
DURA®UBG1500 – 40m (Completion Launching)
DURA® UBG1500 – 40m
DURA® UBG1500 – 40m

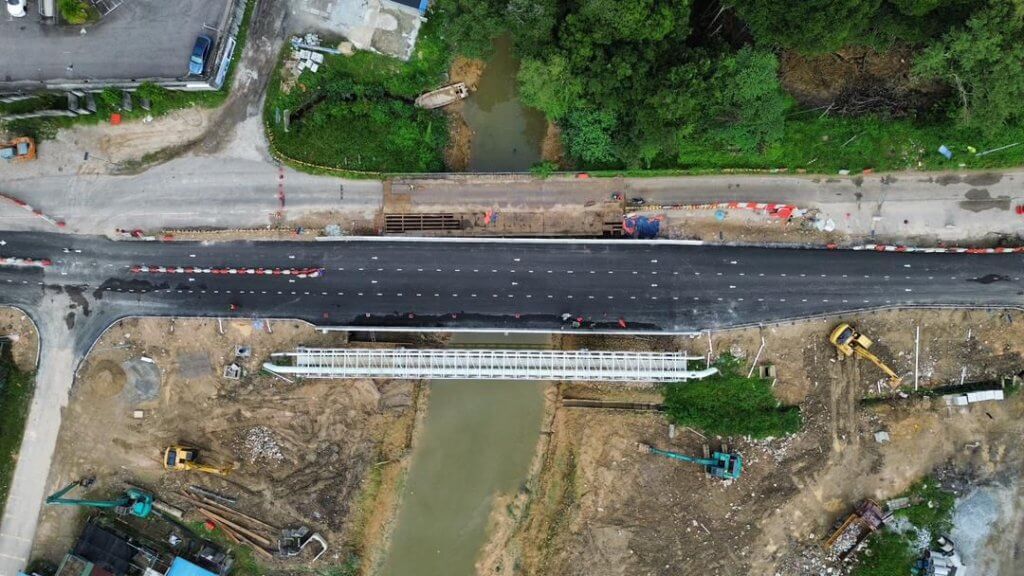

Completed bridge.
Completed bridge.
Completed bridge.(1)
Completed bridge.(1)
Project Title

MENYIAPKAN BAKI KERJA BAGI CADANGAN MEMBINA SEBUAH JAMBATAN KONKRIT MENGGANTIKAN BESI SEDIA ADA DI JALAN GELANG PATAH – PENDAS GELANG PATAH, JOHOR BAHRU

Project Year

2025

Status

Completed Project

Country

Malaysia

GPS Cordinates

1.445671 N, 103.590785 E

Structure Type

One Span 40m by 11.4m + 11.4m Wide UHPFRC Composite Bridge System

Superstructure Feature

6 pieces of DURA® UBG1500 – 40m

Substructure Feature

Cast in-situ RC abutments

Foundation Feature

600mm dia. Spun Piles

Loading Type

HA+ 45 units HB loadings (BD37/01)

Client

Jabatan Kerja Raya Johor

Superintendent Officer (S.O.)

Jabatan Kerja Raya Johor Bahru

Consultant

Dynamic Team Engineers Sdn Bhd

Contractor

Majidee Holding (M) Sdn Bhd

Contract Period

12 months
