Upgrading Agricultural Drainage System using Single Span Dura UHPFRC

  • Project Status

  • Select Country

  • Select Years

  • Reset
Bridge project site.
Bridge project site.
RC piles installed.
RC piles installed.
Concreting pile cap.
Concreting pile cap.

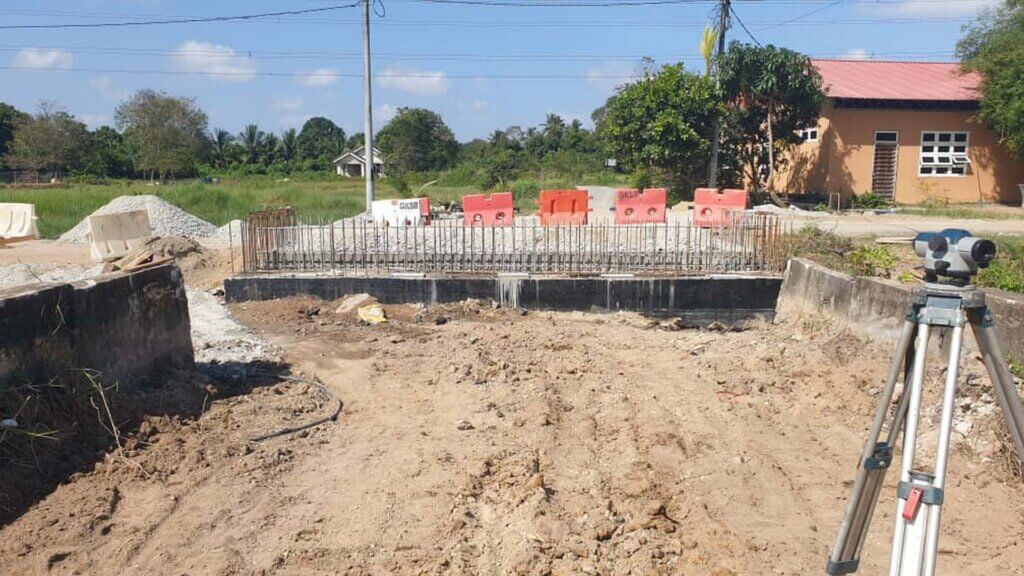

Abutments ready for beam launching.
Abutments ready for beam launching.

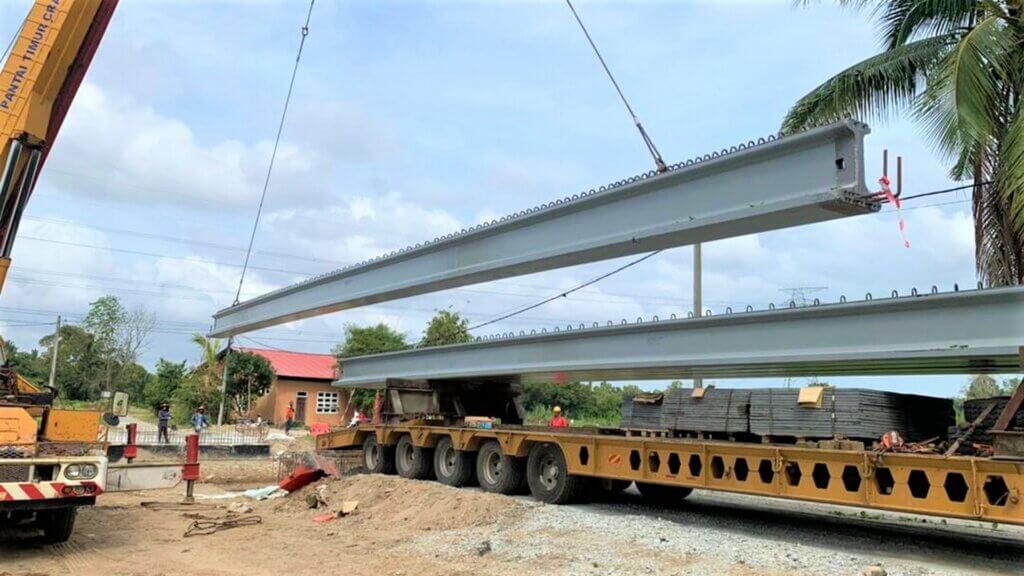

Lifting of beam for positioning.
Lifting of beam for positioning.

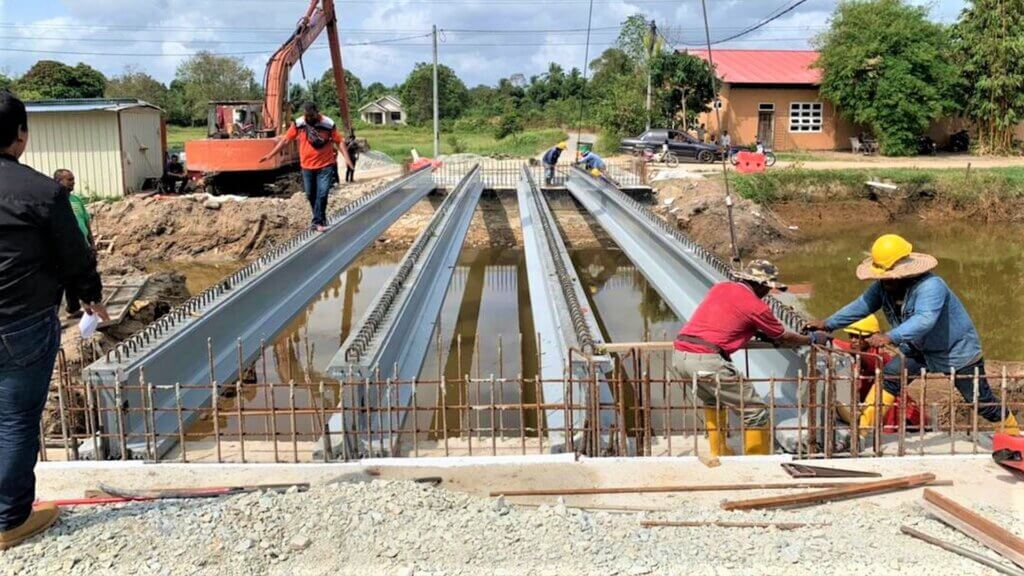

Positioning 4th beams.
Positioning 4th beams.
All five beams launched into position.
All five beams launched into position.

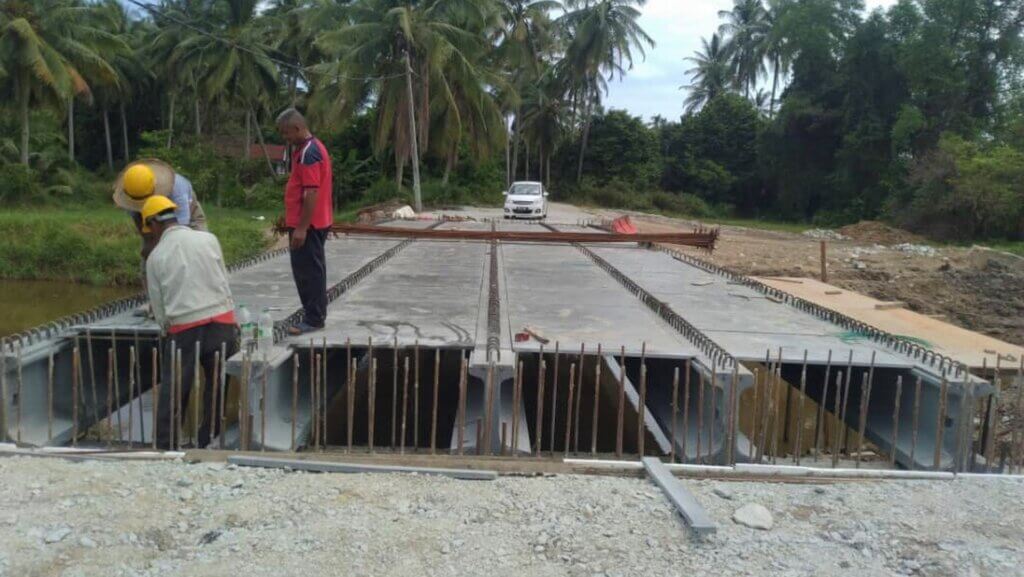

Left in formwork installed.
Left in formwork installed.

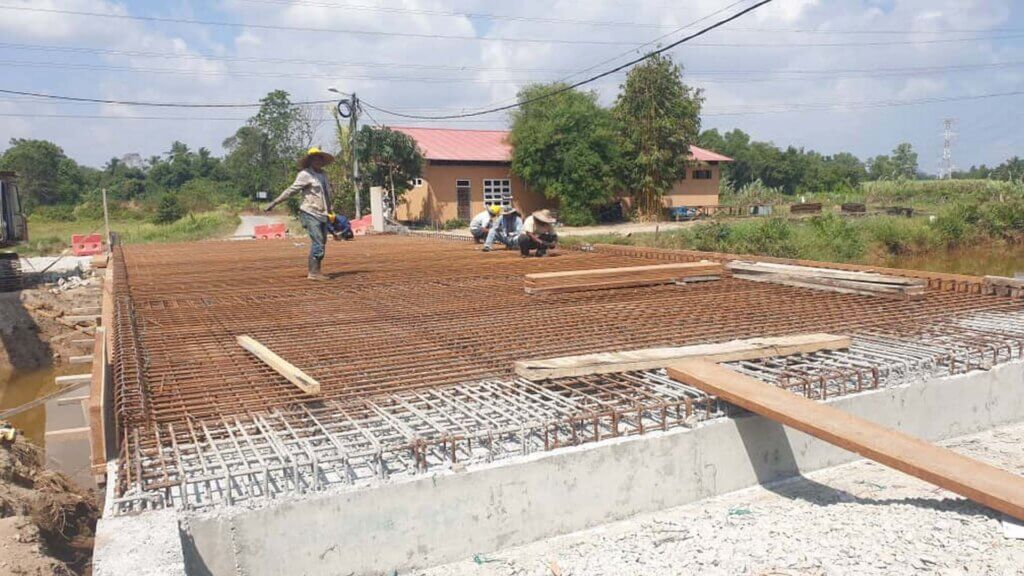

Installation of rebar for the deck.
Installation of rebar for the deck.

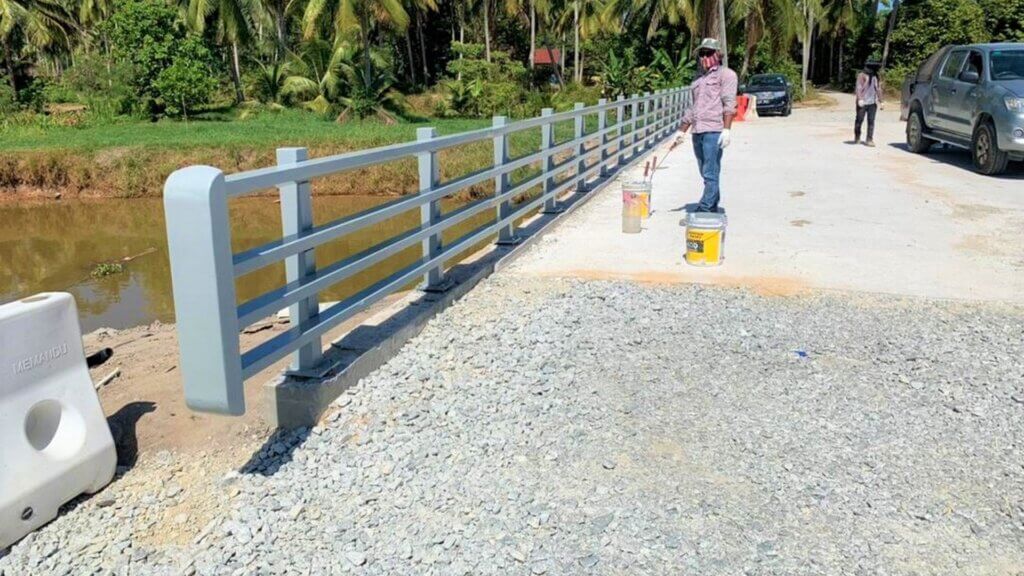

Installation oF DURA UHPC handrailing.
Installation oF DURA UHPC handrailing.
Newly completed bridge 1.
Newly completed bridge 1.
Project Title

Upgrading Agricultural Drainage System At the Area of IADA Kemasin Semerak, Kelantan (Bridge 1) (Menaiktaraf Sistem Saliran Pertanian Dalam Kawasan IADA Kemasin Semerak, Kelantan) (Bridge 1)

Project Year

2021

Status

Completed Project

Country

Malaysia

GPS Cordinates

6.1276060 N; 102.3452370 E

Structure Type

Single Span 20m by 8m Wide UHPFRC integral beam-deck system.

Superstructure Feature

5 pieces of DURA® IBeam650-20m

Substructure Feature

Cast in-situ RC abutments

Foundation Feature

200mm x 200mm dia. SQ RC pile (Class B)

Loading Type

HA+ 30 units HB loadings (BD37/01)

Client

JPS Malaysia

Superintendent Officer (S.O.)

JPS Kelantan

Contractor

First Target Resources
