Upgrading Pan Borneo Highway Sabah from Bongawan to Papar – Bridge over Sg. Kimanis at CH 96 + 375.

  • Project Status

  • Select Country

  • Select Years

  • Reset
Project signboard.
Project signboard.
Project site.
Project site.
Project site crossing river.
Project site crossing river.
Piling works.
Piling works.
On progress piling works, piers and abutments.
On progress piling works, piers and abutments.
Segments and I-beam arrived at port for unload to barge and transporting to Sabah.
Segments and I-beam arrived at port for unload to barge and transporting to Sabah.
Unloading segment on to barge for ship to Sabah.
Unloading segment on to barge for ship to Sabah.
Segments on the barge.
Segments on the barge.
Unloading DURA I-beam on to barge far ship to Sabah.
Unloading DURA I-beam on to barge far ship to Sabah.
Segments and I-Beam on the barge.
Segments and I-Beam on the barge.
Transport segments and i-beam to the site.
Transport segments and i-beam to the site.
Segments and I-Beam arrived at project site.
Segments and I-Beam arrived at project site.

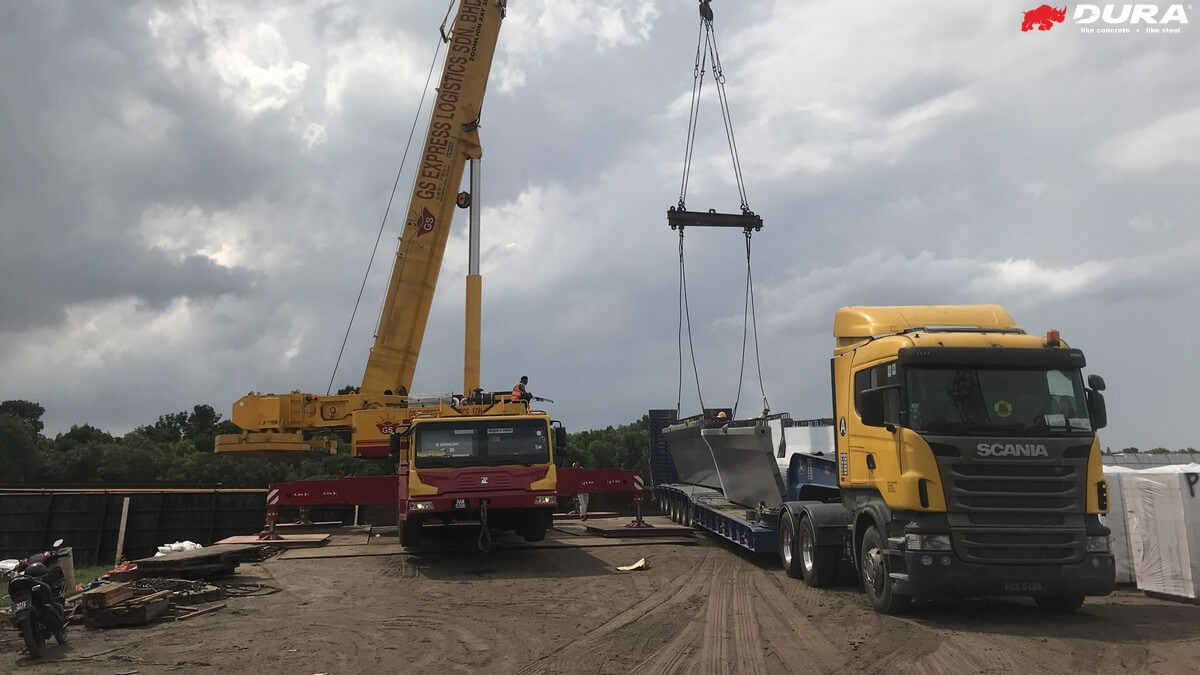

Unloading segment for assemble.
Unloading segment for assemble.
Unloading segment for assemble.
Unloading segment for assemble.
Arrangement segments for assemble and stressing.
Arrangement segments for assemble and stressing.
Unloading DURA I-Beam at site.
Unloading DURA I-Beam at site.
Preparing rebar for crosshead.
Preparing rebar for crosshead.
Casting of crosshead.
Casting of crosshead.
Completed casting of pier and crosshead.
Completed casting of pier and crosshead.
Completed casting of pier and crosshead.
Completed casting of pier and crosshead.
Launching of UBG1750-45m using steel launching girder.
Launching of UBG1750-45m using steel launching girder.
Completed launching of 6 pieces of DURA® UBG1750-45m, 16 pieces of DURA® IB850-14m and 16 pieces of DURA® IB850-19m
Completed launching of 6 pieces of DURA® UBG1750-45m, 16 pieces of DURA® IB850-14m and 16 pieces of DURA® IB850-19m
Fixing rebar for the RC deck.
Fixing rebar for the RC deck.
Fixing rebar for the RC deck.(2)
Fixing rebar for the RC deck.(2)
Preparation for deck slab concreting – platform erection ongoing.
Preparation for deck slab concreting – platform erection ongoing.
Completed bridge.
Completed bridge.
Project Title

PELAKSANAAN PROJEK LEBUHRAYA PAN BORNEO SABAH MENAIKTARAF JALAN DARI BONGAWAN KE PAPAR (BRIDGE OVER SG. KIMANIS AR CH 96 + 375) (Upgrading Pan Borneo Highway Sabah from Bongawan to Papar – Bridge over Sg. Kimanis at CH 96 + 375.)

Project Year

2023

Status

Completed Project

Country

Malaysia

GPS Cordinates

5.622197 N, 115.906122 E

Structure Type

Three Spans 80m by 25.8mm Wide Composite Bridge System.

Superstructure Feature

6 pieces of DURA® UBG1750-45m, 16 pieces of DURA® IB850-14m and 16 pieces of DURA® IB850-19m with Cast In-Situ RC Deck

Substructure Feature

Cast in-situ RC piers

Foundation Feature

900mm & 1200mm Bored Piles

Loading Type

HA+ KEL & 45 units HB loadings (BD37/01)

Client

JKR Malaysia

Superintendent Officer (S.O.)

JKR Sabah

Consultant

Excel Consult Sdn Bhd

Contractor

Pembinaan Kekal Mewah Sdn Bhd
