Upgrading the Bridge at Sungai Menora for 52m UHPFRC

  • Project Status

  • Select Country

  • Select Years

  • Reset

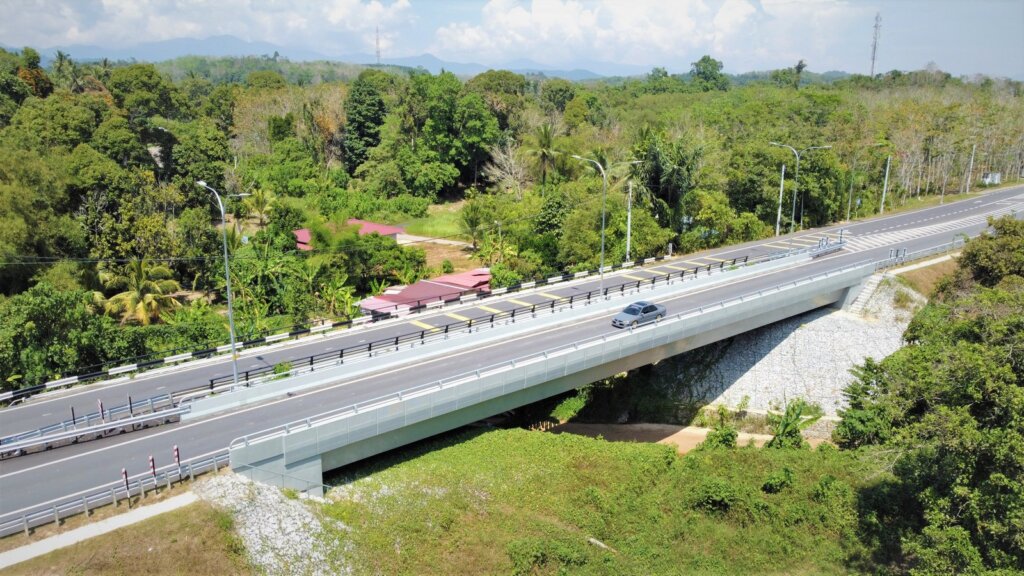

Completed bridge.
Completed bridge.
Completed bridge.
Completed bridge.
Completed bridge._2
Completed bridge._2
Completed bridge.
Completed bridge.
Granular material compacted at the approach slab.
Granular material compacted at the approach slab.
Completion in the installation of RC parapet and RC decking.
Completion in the installation of RC parapet and RC decking.
Installation of precast parapet.
Installation of precast parapet.
Preparation of formwork and rebar for the bridge deck.
Preparation of formwork and rebar for the bridge deck.

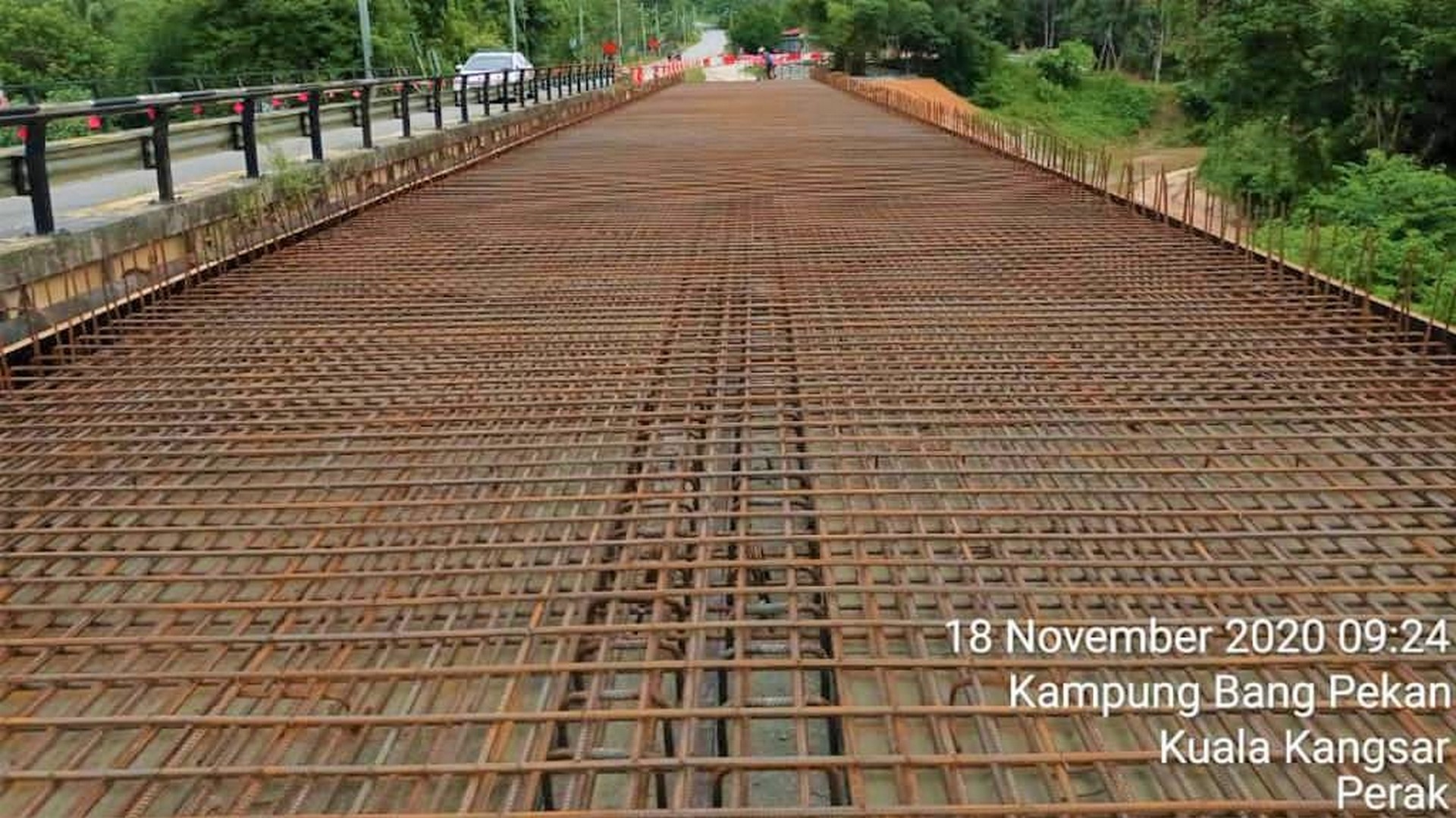

Steel bar for RC deck.
Steel bar for RC deck.
Beam launching completed.
Beam launching completed.
Positioning of the second beam.
Positioning of the second beam.

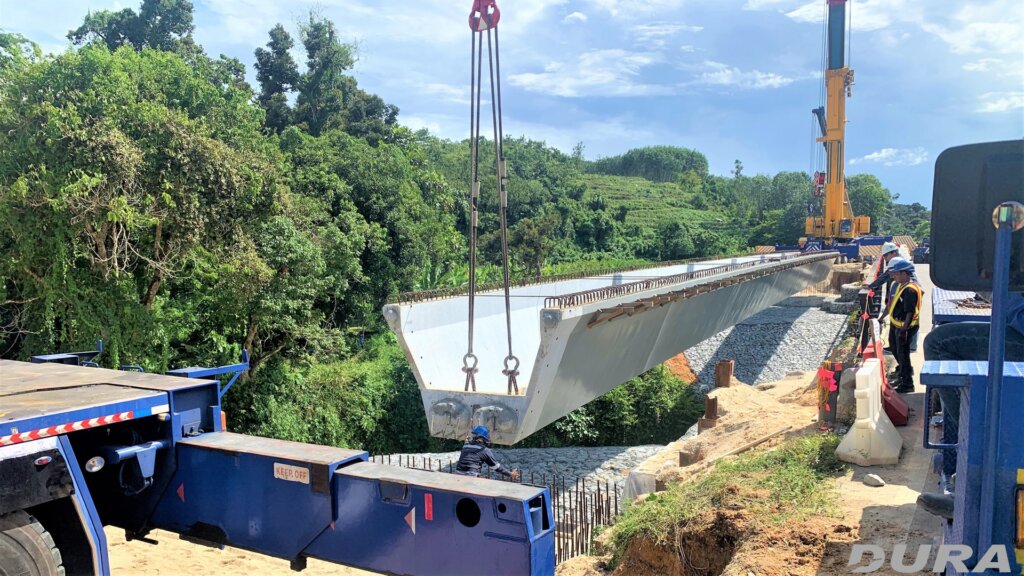

Positioning of the first beam.
Positioning of the first beam.
Lifting of the first beam (241020).
Lifting of the first beam (241020).
PT work in progress.
PT work in progress.
Preparation for post-tensioning work by PSC Freysinet team.
Preparation for post-tensioning work by PSC Freysinet team.
Two numbers of UBG2000-52m assembled behind the abutment.
Two numbers of UBG2000-52m assembled behind the abutment.

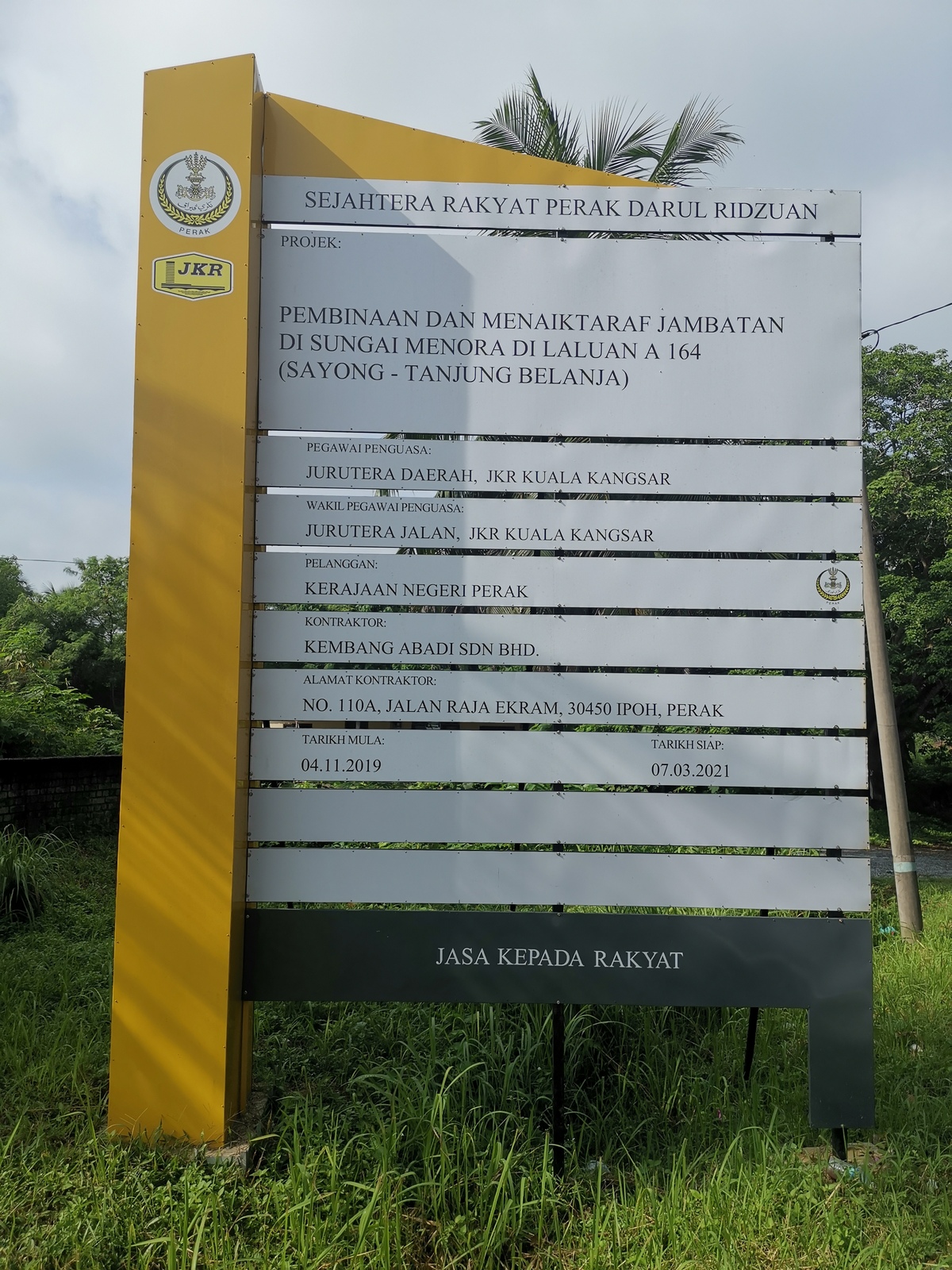

Project Detail
Project Detail
Fixing pile cap reinforcement (060820).
Fixing pile cap reinforcement (060820).
Existing bridge at Sg. Menora
Existing bridge at Sg. Menora
Project Title

To Construct and Upgrade Bridge at Sungai Menora, at Road A164 (Sayong – Tanjung Belanja)(Pembinaan Dan Menaiktaraf Jambatan Di Sungai Menora, Di Laluan A164 (Sayong – Tanjung Belanja))

Project Year

2020

Status

Completed Project

Country

Malaysia

GPS Cordinates

4.708831 N, 100.943682 E

Structure Type

Single Span 52m by 6.65m Wide UHPFRC integral beam-deck system.

Superstructure Feature

2 pieces of DURA® UBG2000-52m

Substructure Feature

Cast in-situ RC abutments

Foundation Feature

450mm dia. Spun pile (Class B)

Loading Type

HA+ 45 units HB loadings (BD37/01)

Client

Kerajaan Negeri Perak

Superintendent Officer (S.O.)

JKR Kuala Kangsar

Consultant

JKR Perak

Contractor

Contractor: Kembang Abadi Sdn Bhd

Contract Period

16 Months

Construction Status

Completed
